Peristaltic Pumps

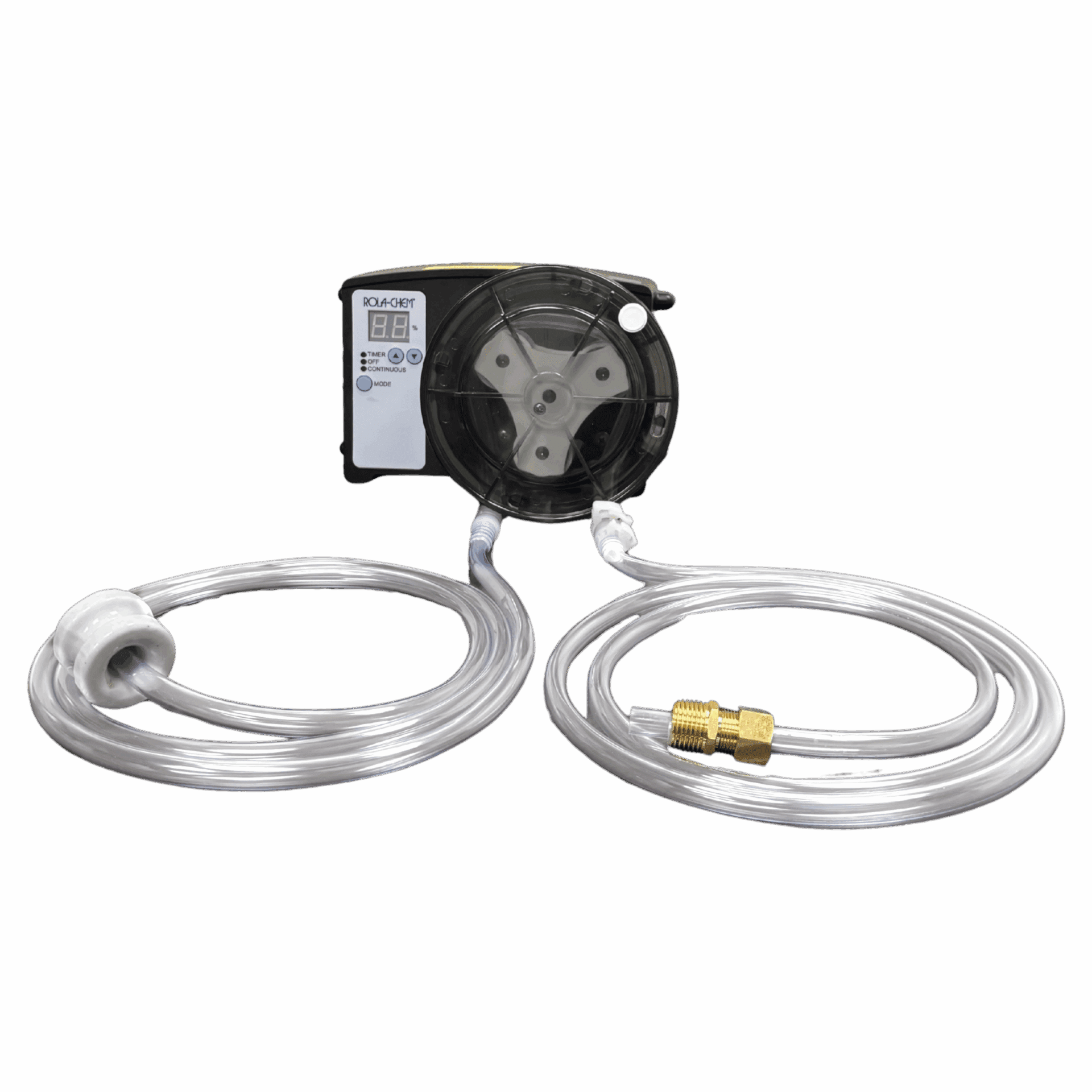

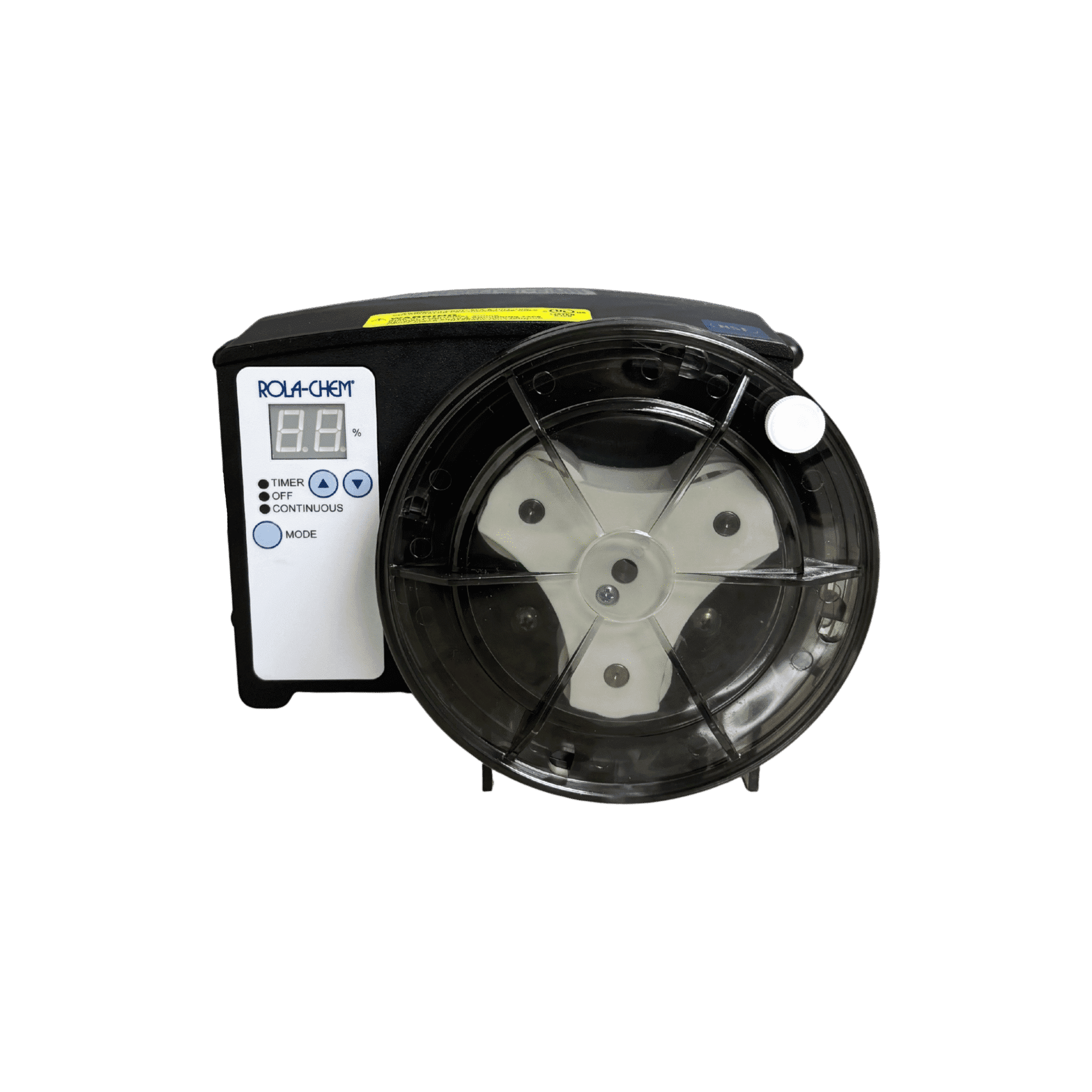

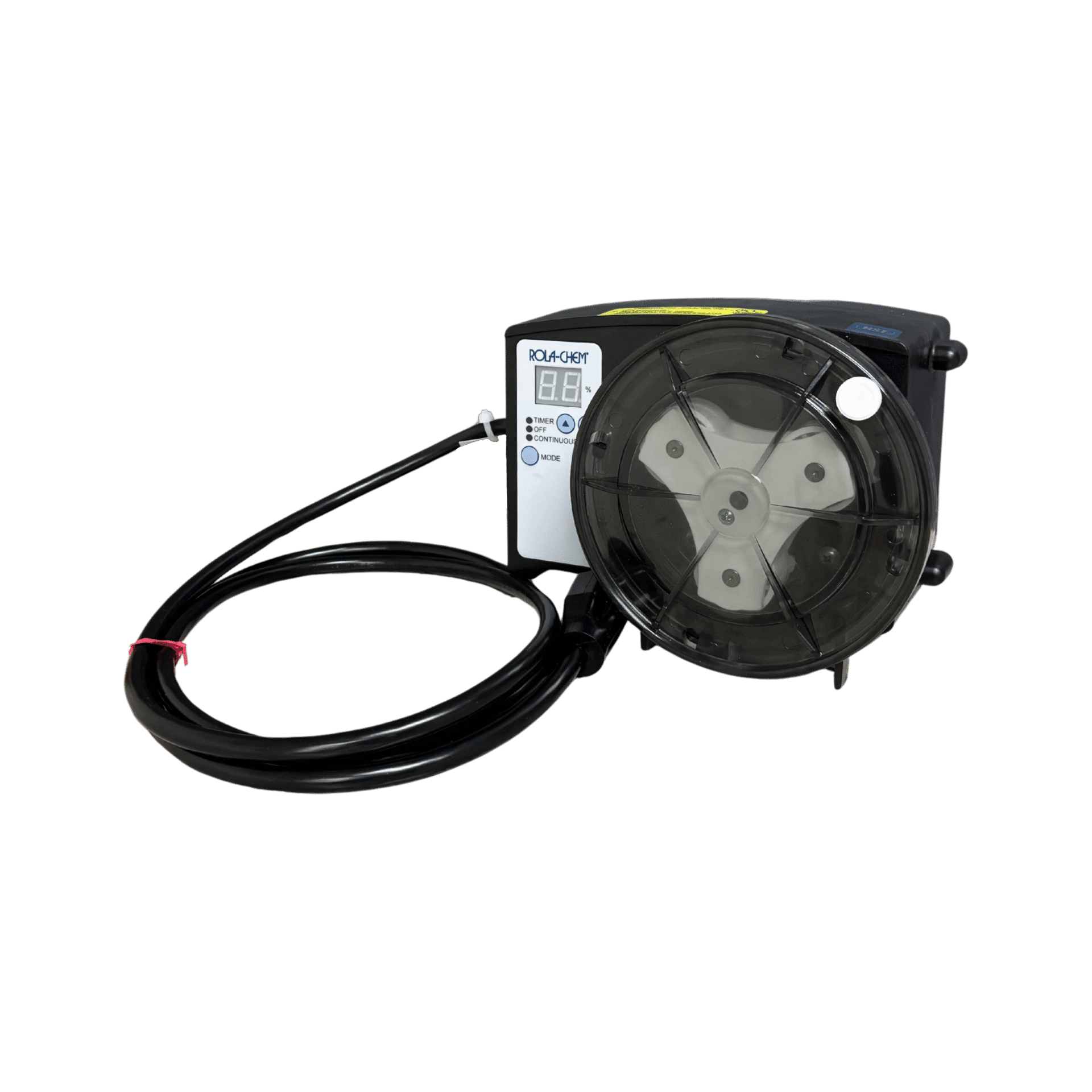

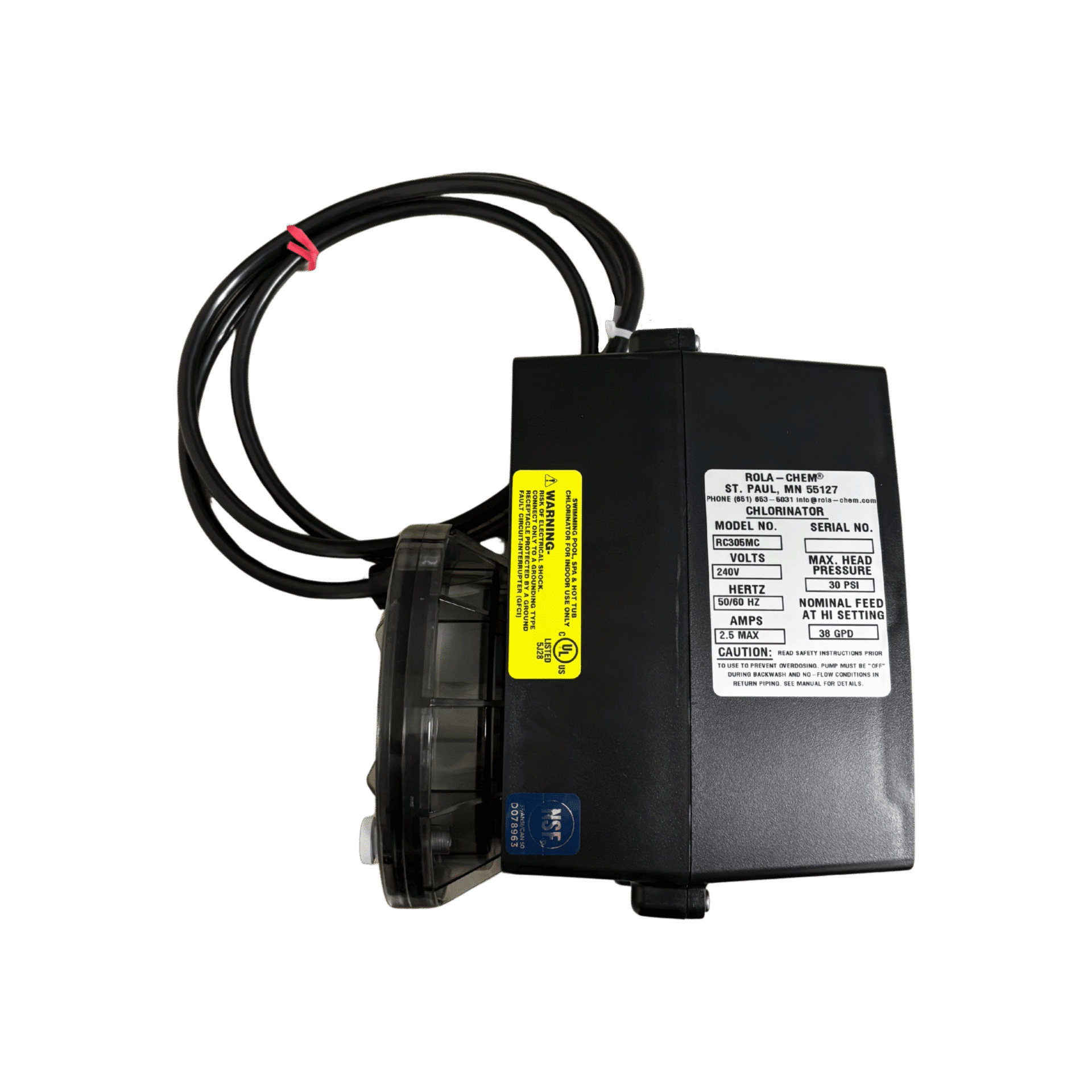

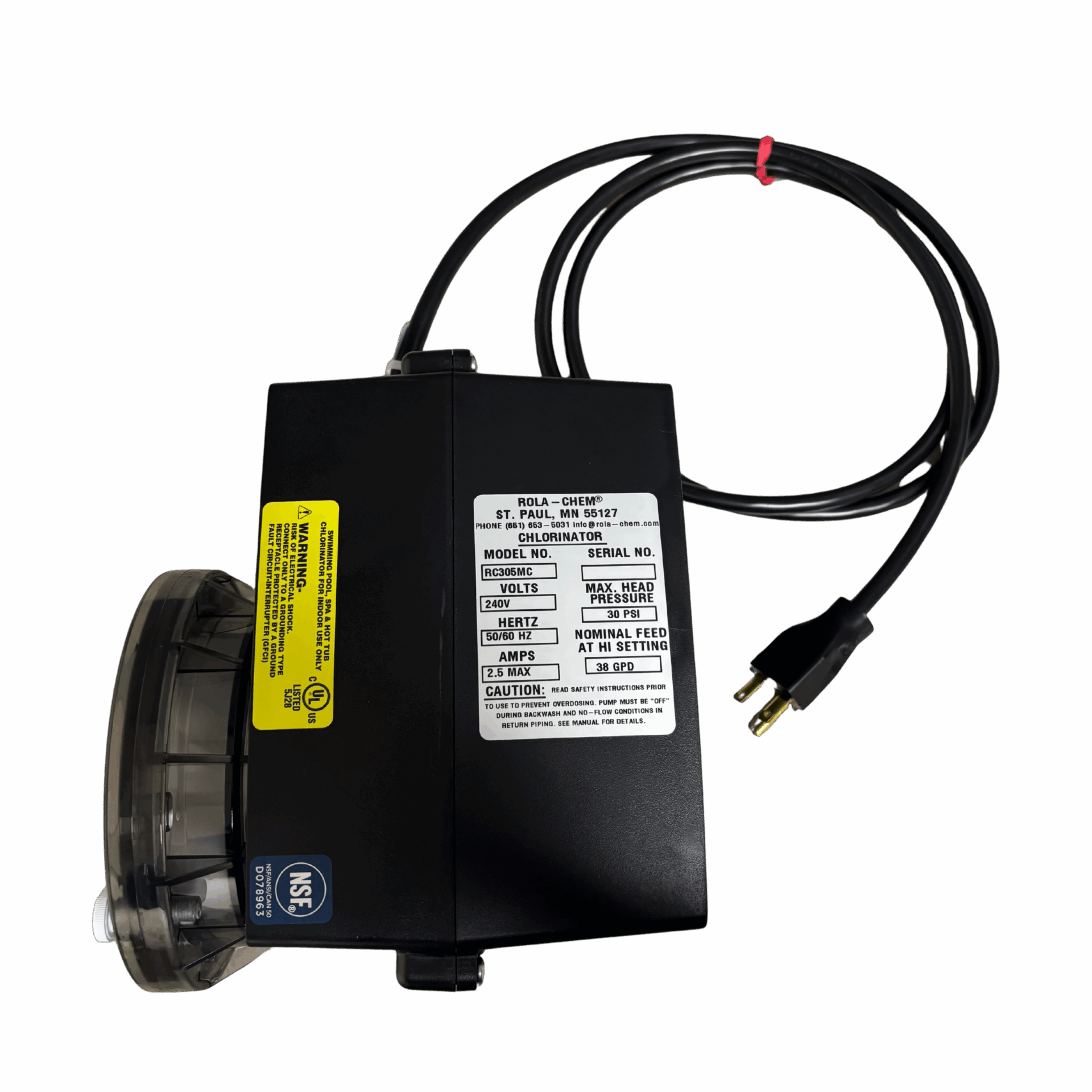

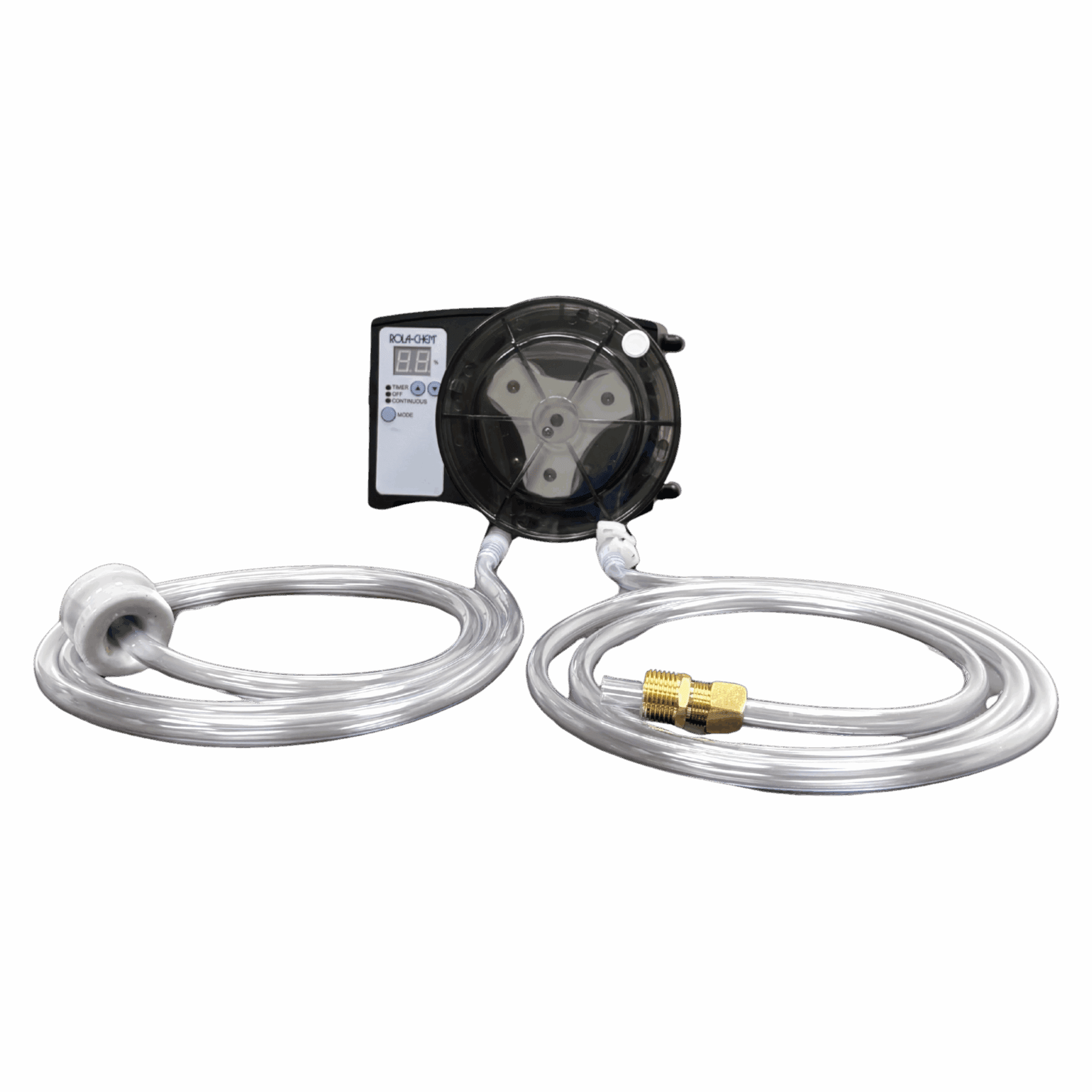

Pro Series 305 Peristaltic Pump 38 GPD 240V cord

Item 543821 Category Peristaltic Pumps

Pro Series 300 Pump RC305MC 38 GPD 240V CORD

Max GPD	38

38 GPD chemical dosing pump powered by 240V cord. Provides high-volume accuracy and reliable operation for pools requiring greater capacity.

ESTIMATED FEED RATES
AT GIVEN TIMER SETTINGS – GALLONS PER DAY
Setting %	On Time	Off Time	RC301	RC303	RC305	RC307
1	5.4 SEC	8.9 MIN	–	0.12	0.38	0.77
2	10.8 SEC	8.8 MIN	0.02	0.24	0.76	1.54
3	16.2 SEC	8.7 MIN	0.03	0.36	1.14	2.31
4	21.6 SEC	8.6 MIN	0.04	0.48	1.52	3.08
5	27.0 SEC	8.6 MIN	0.05	0.60	1.90	3.85
6	32.4 SEC	8.5 MIN	0.05	0.72	2.28	4.62
7	37.8 SEC	8.4 MIN	0.06	0.84	2.66	5.39
8	43.2 SEC	8.3 MIN	0.07	0.96	3.04	6.16
9	48.6 SEC	8.2 MIN	0.08	1.08	3.42	6.93
10	54.0 SEC	8.1 MIN	0.09	1.20	3.80	7.70
15	1.4 MIN	7.7 MIN	0.14	1.80	5.70	11.55
20	1.8 MIN	7.2 MIN	0.18	2.40	7.60	15.40
25	2.3 MIN	6.8 MIN	0.23	3.00	9.50	19.25
30	2.7 MIN	6.3 MIN	0.27	3.60	11.40	23.10
35	3.2 MIN	5.9 MIN	0.32	4.20	13.30	26.95
40	3.6 MIN	5.4 MIN	0.36	4.80	15.20	30.80
45	4.1 MIN	5.0 MIN	0.41	5.40	17.10	34.65
50	4.5 MIN	4.5 MIN	0.45	6.00	19.00	38.50
55	5.0 MIN	4.1 MIN	0.50	6.60	20.90	42.35
60	5.4 MIN	3.6 MIN	0.54	7.20	22.80	46.20
65	5.9 MIN	3.2 MIN	0.59	7.80	24.70	50.05
70	6.3 MIN	2.7 MIN	0.63	8.40	26.60	53.90
75	6.8 MIN	2.3 MIN	0.68	9.00	28.50	57.75
80	7.2 MIN	1.8 MIN	0.72	9.60	30.40	61.60
85	7.7 MIN	1.4 MIN	0.77	10.20	32.30	65.45
90	8.1 MIN	54.0 SEC	0.81	10.80	34.20	69.30
95	8.6 MIN	27.0 SEC	0.86	11.40	36.10	73.15
99	8.9 MIN	5.4 SEC	0.89	11.88	37.62	76.23
On	CONTINUOUS	—	0.90	12.00	38.00	77.0

Item 543824 Category Peristaltic Pumps

Pro Series 300 Pump RC307MC 77 GPD 120V CORD

Item 543822 Category Peristaltic Pumps

Pro Series 300 Pump RC305MP 38 GPD 120V CONDUIT

Item 543812 Category Peristaltic Pumps

Pro Series 300 Pump RC303MC 12 GPD 120V SHORT CORD

Item 543808 Category Peristaltic Pumps

Pro Series 300 Pump RC301MC .9 GPD 120V SHORT CORD
